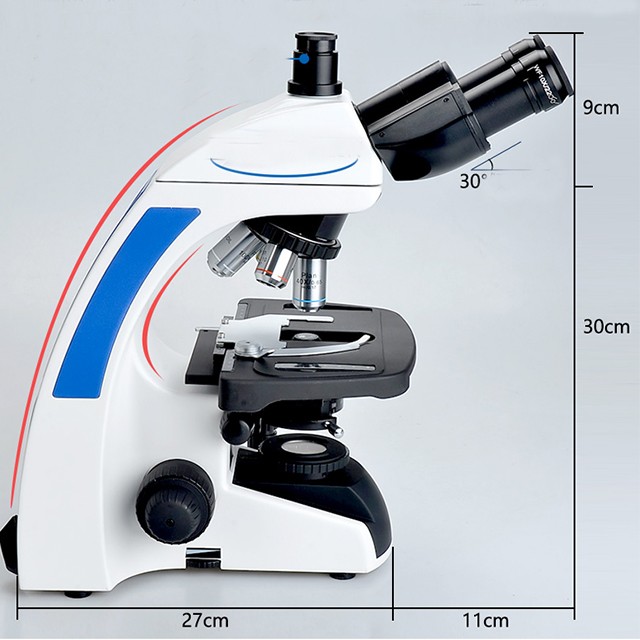

biological microscope SG-300 (NEW)
|
||
|
Optical System
|
Infinite Optical System
|
||
|
magnification
|
40x-1000x.(40x-1600x optional)
|
||
|
Head
|
Trinocular Head, 30° Inclined, 360° Rotatable
|
||
|
Nosepiece
|
Backward quadruple nosepiece
|
||
|
Stage
|
Double Layers Mechanical Stage 216×150mm, Moving Range 60×80mm, Fine Division0.1mm
|
||
|
Focusing System
|
Coaxial Coarse And Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 28mm,With Safty Stop
|
||
|
Illumination
|
3W LED lighting, predetermined center, continuous brightness adjustable.
|
||
|
Condenser
|
Abbe Condenser NA1.25 with Aperture Diaphragm
|
||
|
Power Supply
|
External Power Adaptor, Wide Voltage AC 100~240V, DC 5V/2A
|
||
|
Filter
|
Blue filter Φ 38
|
||
|
Package Size
|
Packing Box247*185*445mm
|
||
|
gross weight
|
9.5KG
|
||
|
Eyepiece
|
large field of view, high eye point flat field eyepiece,WF10X,(WF16X Optional),Binocular,
Interpupillary Distance 50-75mm, Tube Diopter Adjustable
|
||||
|
Field
|
WF10X/22mm
|
||||
|
objective lens
|
Infinite Plan Achromatic Objective
|
||||
|
Magnification
|
PL L 4X
|
PL L 10X
|
PL L 40X
|
PL L 100X(oil)
|
|
|
Condenser NA
|
0.1
|
0.25
|
0.65
|
1.25
|
|
|
Distance(mm)
|
18.3
|
11
|
3.8
|
1.35
|
|
